P-Soft software manual

-------------------------------------------------------------------------------

Table of contents :

1. Software

1.1 Description

1.2 Opening the software

1.3 Sections of the software window

1.4 Principles

1.5 Managing the registers and the banks

2. P-Soft Walkthrough

3. MIDI assignments

To make a quick walkthrough of the software, go directly to chapter 2. P-Soft Walkthrough.

To read the requirements for the score writing, go to Score writing




1. Software

1.1 Description :

This software is part of an extension for an acoustic instrument. It is distributed in the objective of letting users program an environment for the treatment of effects and write scores for acoustic instruments in real-time.

The software is inspired by the effects treatment device LXP15 – or more precisely by one of its algorithms.

In order to take full advantage of the graphical interface, you should define the resolution of your screen as 1152 x 720.




1.2 Opening the software :

P-Soft is supplied in the form of a MaxMSP file. To open P-Soft, you need to have a recent version of MaxMSP Player (version 6.1.3 and higher) installed on your computer.

You can download MaxMSP Player for free here:

Download the Max Runtime Cycling 74

Once you have appropriately installed the MaxMSP software, start by opening up “Max Runtime”. From the File menu, open the file P-Soft.

To be able to work properly, you need to make sure that the input and output sound parameters of your computer and of MaxMSP are defined according to the sound card used.

The management of audio and MIDI are taken care of by the host software MaxMSP. For more details, you can read the MaxMSP user manuals:

Max 6 Help and Documentation




1.3 Sections of the software window - ”Panels”:

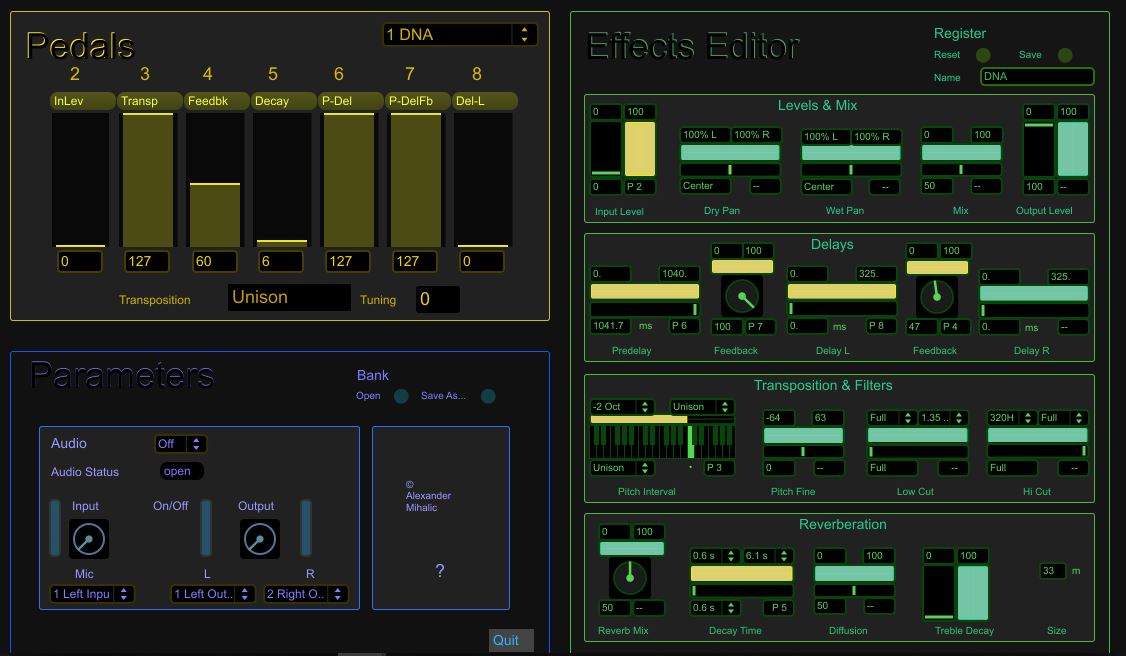

The software opens up in a sole window divided in three parts:

1 – Pedals

2 – Effects Editor

3 – Parameters


1 - PEDALS

This panel allows the user to control and emulate the real pedals used by the device. This is also panel for the musician with the main information: which parameters are assigned to which pedal, the name and number of the selected register, visual position of the pedals.

2 - EFFECTS EDITOR

This is the centre for editing the effects parameters assignments. Each parameter can be assigned to a pedal and the range of this assignment can be modified. The assigned parameters are yellow and the non assigned are green.

Here you can save the registers, rename them or initialize them.

3 - PARAMETERS

This panel contains the basic settings of the software: audio, MIDI and the possibility to save or open banks. It is also in this panel that you set the general input and output sound level for the treatments.




1.4 Principles :

With the software you can simulate the pedals played by the musician and program the Registers and Banks.

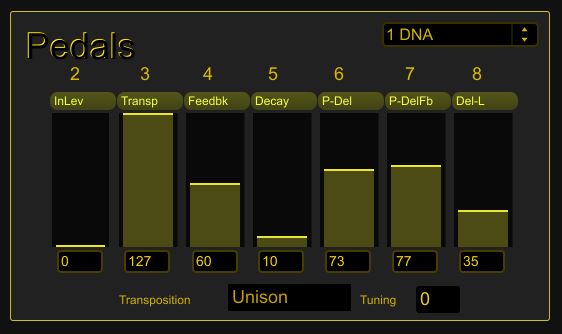

The physical pedals are represented by the sliders in the PEDALS panel.

Pasted Graphic 02.jpg

There are 8 pedals (one On/Off and 7 continuous control pedals):

Pedal 1 – On/Off

Pedals 2 to 8 – Continuous control (the more you press the pedal, the higher the slider rises)



Like the physical pedals, the sliders remain in position even if the menu with the registers has been changed.

The pedals’ values vary from 0 to 127.

Each pedal is affected to one treatment parameter whose name is indicated above.

The “Transposition” and “Tuning” sections show the real values of these parameters.

The editing of assignments and treatments is done in the EFFECTS EDITOR panel:



Each parameter can be defined as follows:

• directly the value of the parameter – with the slider or the number showing this value below

• the minimum and maximum limits (represented graphically by the coloured bar) – with the boxes above the slider (digital boxes or the menus)

• the number of the pedal affecting the parameter between the predefined minimum and maximum levels

When a pedal is assigned to the parameter, the coloured bar turns yellow. Without any assignment the bar remains green.

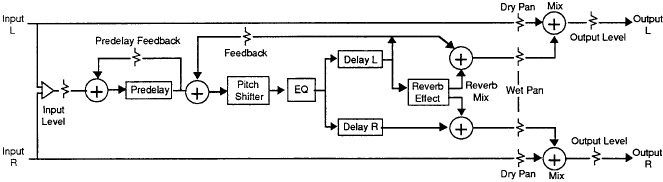

This is the treatment scheme:

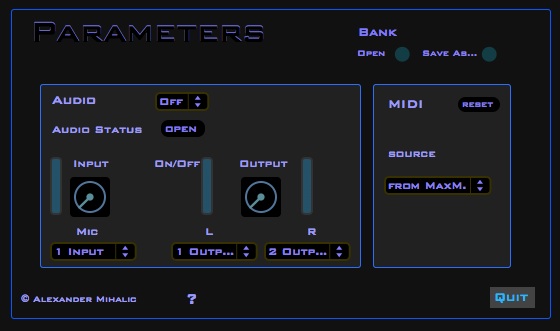

All the parameters of audio input/output and MIDI assignment as well as the bank management are done in the PARAMETERS panel:


Here you can edit, control and change the audio input and output of your sound card. You can also affect the inputs of the MIDI controllers in order to simulate the pedals.

To quit the application, click on the “Quit” button.




1.5 Managing the registers and the banks:

Registers :

The treatment states are registered in the Registers. Once the configuration of the parameters is finished it is possible to save the register using the button “Register - Save”. To generate a state with no assignments, click on the “Reset” button. The register will then be set to zero.

NB – the registers are not saved separately on the disc, but the “Register - Save” only saves them in the computer’s RAM. To open and close the registers you will use the banks.

Banks :

You have 8 registers to work with. The 8 registers compose a Bank.

You can save all the 8 registers in one bank on your hard drive using the button “Save As…” To open a file click on “Bank - Open”.




2. P-Soft Walkthrough:

To take the first steps with P-Soft:

-----------

1 – Open the Max Runtime application.


-----------

2 - In Max Runtime open the file P-Soft.


-----------

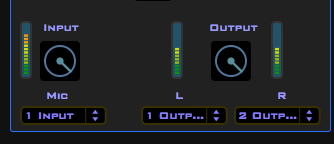

3 - First and foremost you need to configurate your sound card and choose one input and two outputs in the P-Soft.

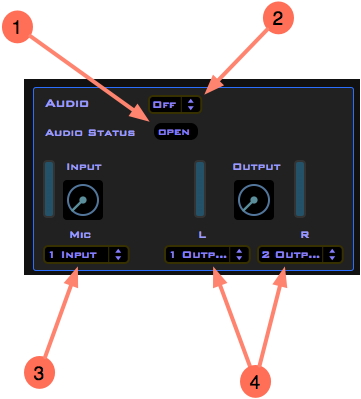

To do this, follow these steps:


1 – Click on ‘Open” to access to the configuration panel of your sound card

2 – Start up the P-Soft and turn on the audio

3 – Select the input of your microphone (mono input)

4 – Select the left and right exits of your sound card

-----------

4 - Once you have set your sound card you can observe the input level in the P-Soft.


You can now open the input volume.


-----------

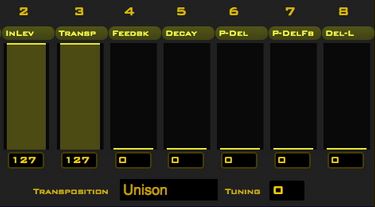

5 - Select the “DNA” register in the PEDALS panel and place the pedals sliders like this:


-----------

6 - Now open the output volume and make a sound. You will observe the Output levels.


-----------

7 - Now modify the level of Pedal 3 which is connected to the transposition and listen to the result:


The transposition interval shows at the bottom of the PEDALS panel.

At the same time, as you move the Pedal 3, you can observe in the EFFECTS EDITOR panel the transposition represented as a note played on the virtual keyboard:

Make changes on Pedal 3 between 0 and 127 – the extreme positions. Despite these changes, you may observe in the EFFECTS EDITOR panel that the transposition only varies between the transposition to an octave lower and unison.

Observe the yellow bar just above the virtual keyboard – it graphically covers the distance between an octave lower and unison.

-----------

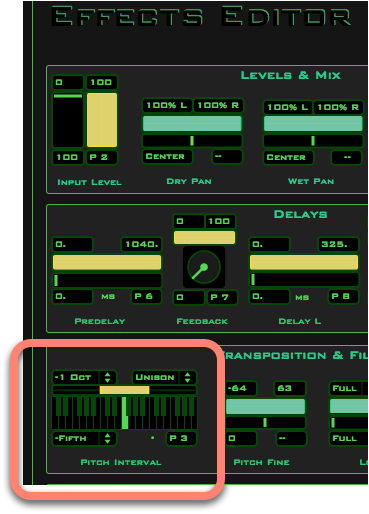

8 - Now click on the menu on top left of the “Pitch Interval” parameter:

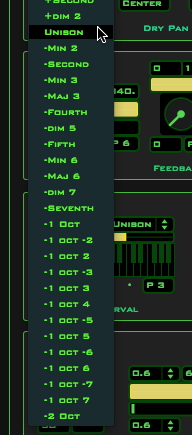

You will have the possibility to define a new lower limit to the transposition on the scroll down menu. Select “Unison”:


You now have the limits of the transposition set to the minimum “Unison” and the maximum “Unison”:


If you move the Pedal 3 in this configuration, there will be no change in transposition as the minimum and maximum levels are equal. The coloured bar indicates a sole note – the unison.

-----------

9 - Now change the maximum level for the transposition and choose one octave above:


Observe that the coloured bar covers the space between unison and the octave above.

Move Pedal 3 and listen to the transposition which now goes up to the octave above.

-----------

10 - Now reverse the minimum and the maximum setting the minimum to the octave above and the maximum to “Unison”:


If you move Pedal 3 now, you will transpose inversely – as you draw up the pedal slider, the transposition lowers and as you draw down the slider, transposition gets higher.

-----------

11 - Now click the menu for selecting the pedal assigned to the parameter. It is located at the bottom on the right of the “Pitch Interval” parameter. Select “—“. This means none of the pedals control the parameter:


Then click on the note “Do” shown as a dot below. You are doing a fixed “transposition” at unison.

You can now observe that the coloured bar has turned green, which means that no pedal is assigned to the parameter:


If you move the Pedal 3 now, there will be no transposition, as the pedal is no longer connected to this parameter.

However, you can still choose a fixed transposition which will remain assigned to the parameter without any change.

-----------

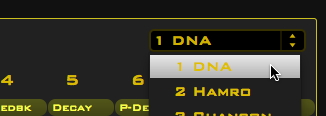

12 - Now click on the registers menu in the PEDALS panel and reselect the first register called “DNA”:


Pedal 3 is now again assigned to the “Pitch Interval” parameter with the original maximum and minimum levels.

-----------

13 - Select registers 1, 2 and 3 and observe the changes in the assignment of pedals and the configuration of parameters in the EFFECTS EDITOR panel:


-----------

14 - Once you have returned to the “DNA” register, click the button “Register - Reset”:


All parameters are set to zero – the neutral position, without pedal assignments and with the minimum and maximum levels at their widest:


Please note that the “Input Level” and “Output Level” parameters have been initialized to 100. If you want to make the sound pass through the effects, you need to push up the levels like this:

-----------

15 - Change and modify the parameters to play with the pedals, and save the state of each register.

To save all 8 registers on the hard drive, you have to click the button “Bank - Save As…”


You receive a dialogue box to save the file containing the complete configuration of all registers.

-----------

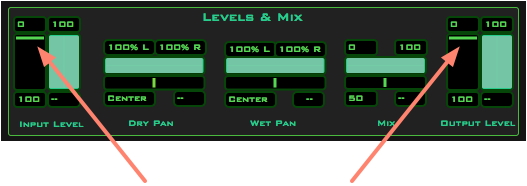

16 - Return to the first register DNA. Lower completely Pedal 2, which currently commands the sound entry parameter in the “Input Level” effects.


You may observe that the level on the EFFECTS EDITOR panel is 0 as well:


-----------

17 - Now click once on the Pedal 1 slider. It turns completely yellow. If you click again, it turns back black. This is the On/Off pedal. You can only press it with your foot or let it go.


Observe what happens to the “Input Level” parameter. The volume jumps from 0 to 127 at once.

Now place Pedal 2 halfway:


And click again on the On/Off pedal. The volume of the parameter now jumps from half (value of Pedal 2) to maximum. If you turn off Pedal 1, the value of the Input Level falls back to half (value of Pedal 2).

Pedal 1 functions like follows:

I – It always affects the input volume

II – When it is turned off, it leaves the input level in its current position

III – When it is turned on, it turns the input volume level to its maximum



NB :

The On/Off Pedal 1 is the only one that cannot be assigned to an effect parameter. This pedal is permanently assigned to the InputVolume level and in a relative manner. When pressing the pedal, the input opening rises to maximum and falls back to its initial position.




3. MIDI Assignments:

If you want, you can simulate the pedals with MIDI controllers. However, make sure not to move more than two potentiometers at the same time, as it is not possible to move more than two pedals at once with your feet!

The software is designed to be used through the mouse. If you want to add a MIDI controller to control the PEDALS sliders, you need to configure it according to the following scheme:

Pedal Ctl Ch
1 (On/Off) 4 1
2 (continuous) 7 1
3 (continuous) 7 2
4 (continuous) 7 3
5 (continuous) 7 4
6 (continuous) 7 5
7 (continuous) 7 6
8 (continuous) 7 7



NB:

If you simulate the pedals with “mixing desk” type interfaces, be careful not to change all pedals at once. Keep in mind that the musician can only play two pedals at the same time and that he cannot spend all the time searching where to put his feet.
